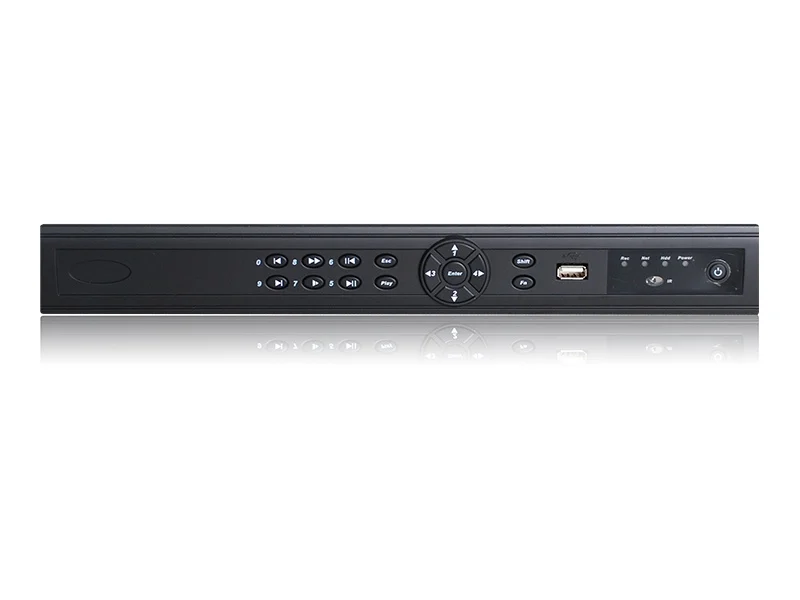

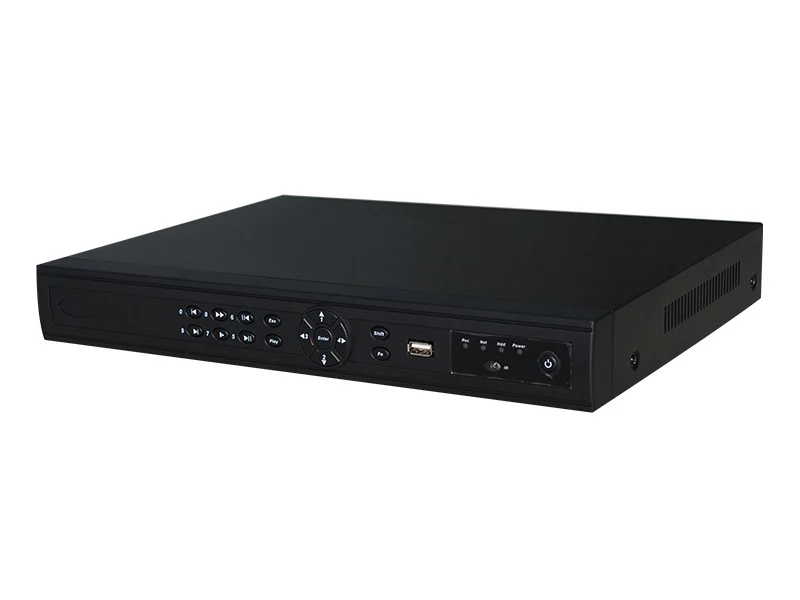

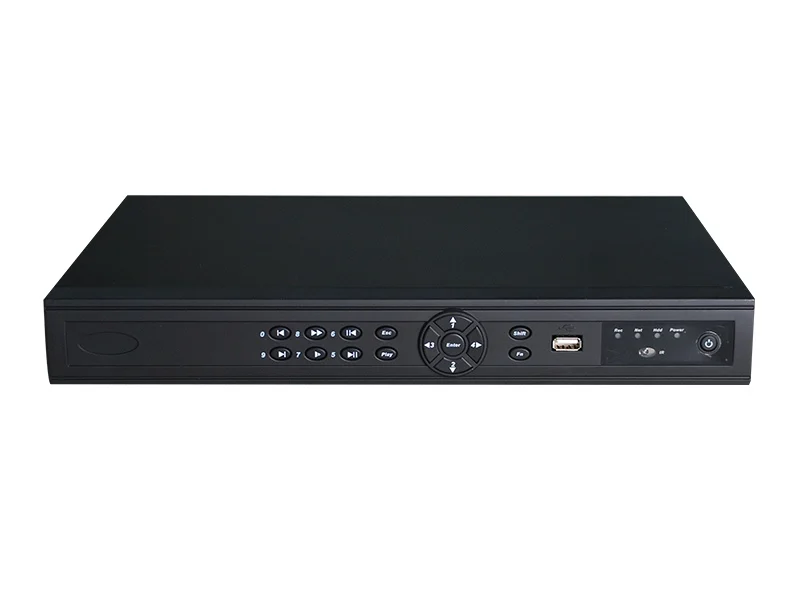

Lihmsek High-End 16 Channels Network Video Recorder 16 CH CCTV NVR 1ch face detection or 2chs perimeter analysis 2pcs HDD Port

Video Output 1CH HDMI 1920X1080 60Hz

Brand Name lihmsek

Hard Drive Size 3.5''

Alarm Action Email Photo

Hard drive Interface Type SATA

Communication Interface RS485

IP Mode Dynamic IP address

Audio Output 1CH RCA

Model Number LM-NVR3116P16

Video Input Interface BNC (1.0 Vp-p, 75Ω)

Audio Input 8 Channel

Two-way Audio YES

Product name 16CH Network Video Recorder with 16CH POE

IPC Input\t 128Mbps\t16CH

Audio Compression\t G.711A\tG.726

Video decoding MPEG-4\tH.264

Capture image function\t Support JPEG capturing

Intelligent Analysis\t Optional 1CH Face detection or perimeter analysis\tSupport Max. 1080P

Decoding Ability\t 13CH 720P 30fps or 6CH 1080P fps

USB Port 2*USD2.0

HDD port\t 2*SATA ports (no limited)

Network port\t 1pc RJ45\t10M/100M/1000M self-adaption ethernet port

High-End 16 Channels Network Video Recorder 16 CH CCTV NVR 1ch face detection or 2chs perimeter analysis support 2pcs Hard Disk, with 16CH POE Port Features: 16CH NVR Recorder with 16CH POE Port * ONVIF SPEC 2.4; * Access bandwidth 128M,UP to 6MP IP camera access; * 16CH IPC access, Up to 16CH simultaneous playback; * 1CH face detection or 2CHs perimeter analysis; *1000M adaptive Ethernet ports, 16CH POE ports; *Support 2* SATA HDD; * Support for third-party cloud storage, support for P2P, support for mobile messaging push. Specification: Model No. LM-NVRP3116-P16 OS Embedded Linux Video&Audio input Bidirectional Talk 1CH,BNC(Line in,2Vpp,1Kohms) IPC Input 128Mbps 16CH Video&Audio output CVBS 1CH,BNC(1.0Vp-p,75ohms) VGA 1CH, Resolution: Optional 1920x1080, 1280×1024, 1280×720, 1024×768 HDMI Standard 1.3a Resolution 1920x1080,1280×1024,1280×720,1024×768 Audio Output 1CH,RCA(Line out,2Vpp,300ohms) Video&Audio encoding Audio Compression G.711A Audio Bit Rate 64Kbps Video&Audio decoding IP Resolution Main stream:up to 1920x2048 Auxiliary stream: no higher than D1 Audio Compression G.711A, G.726 Video decoding MPEG-4/H.264(Up to High Profile @ Level4.2) Synchronous Playback Up to 16CH Decoding Ability 13CH 720P @ 30 or 6CH 1080P @ 30 Intelligent Analysis Optional 1CH Face detection or perimeter analysis Support Max. 1080P Other Function Bidirectional Talk Two-way voice intercom function Motion Detection Zones: 396(22*18), Sensitivity: 1~6 (level 6 is highest) Picture Capture Local Capture & Web Capture in JPEG HDD Interface SATA 2 Max Capacity no limited POE Function POE port 16CH IEEE 802.3af RJ45 adaptive 10M/100M External Interface Network Interface 1 RJ45 10M/100M/1000M adaptive Ethernet interface Output Power < or = 200W USB 2 USB 2.0 Interfaces Size&Weight Dimensions 405*335*120mm Front Panel LED Size 1U, 405*365*123mm Weight 3Kg (without HDD) General Power Supply DC +12V 4A Working Temperature 0 deg C~+55deg C Working Humidity 10%~90% Consumption 10W (without HDD, not include POE) Click below to buy some IP cameras to work with this NVR: Featured5.0 Megapixel IP Fisheye Camera Normal5.0 Megapixel IP Camera Normal4.0 Megapixel IP Camera Normal1MP-1.3MP-2.0MP IP Camera Also we can provide you H.265 IP Cameras, please check below links: New Arrival FeaturedH.265 IP Starlight Camera New ArrivalFeaturedH.265 IP Fisheye Camera New Arrival H.265 4.0MPIP Camera Production Process Company Profile Certificates Our Service After-saleservice: A.AllgoodswillbestrictlycheckedbyourQCdepartmentbeforeshipping B.Allgoodswillbewellpackaged C.24Monthshardwarewarranty D.Life–timesoftware/firmwareupdateandtechnicalsupport E.Allquestionswillberepliedatthefirsttime Payement:WeacceptT/Tbybanktransfer,PayPal,Escrow,WesternUnion,MoneyGramandL/Cforbulkorder. Shipping:Wehavestrongcooperatio nwithDHL,FedEx,UPS,TNT,EMS,Chinapostoffice.Youcanalsochooseyour ownforwarder. If you have any questions about our products, please don't hesitate to contact us! We are looking forward to your orders!Thank you for your attention. :-)))
